FD LSx Engine Subframe Complete Kit

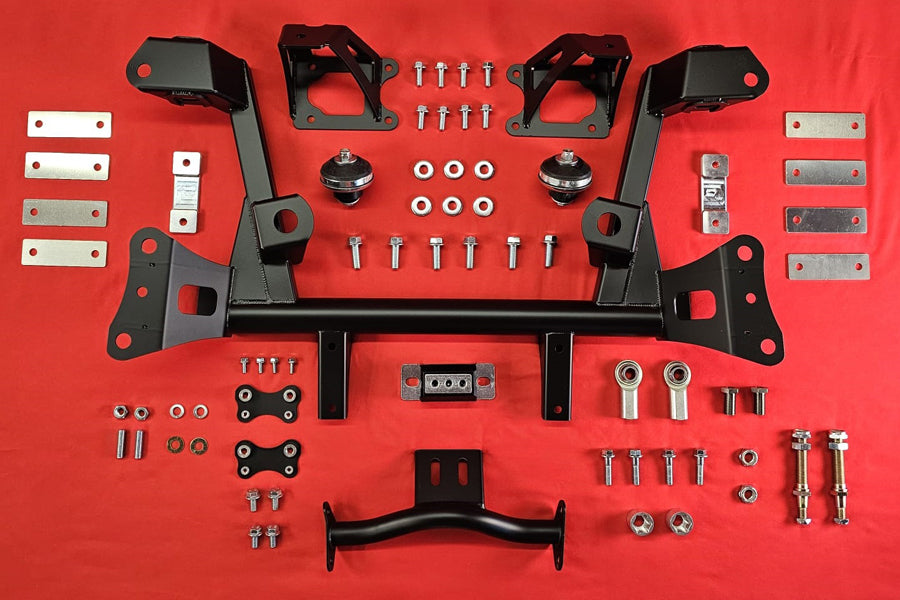

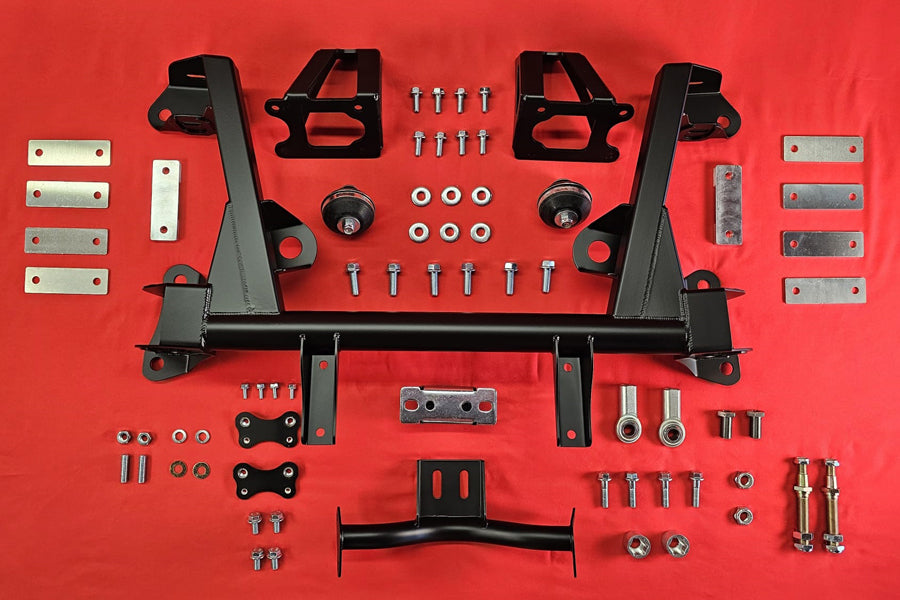

Looking to swap out the engine in your FD3S? Our LSx subframe complete kit is the top choice in the v8rx7 community. This version is complete kit and contains everything needed to mount an LS engine and transmission.

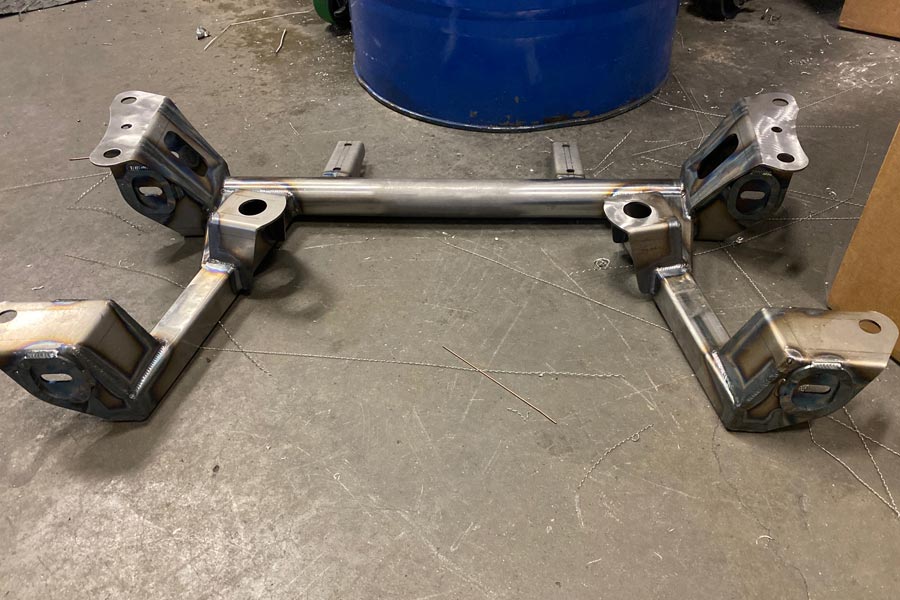

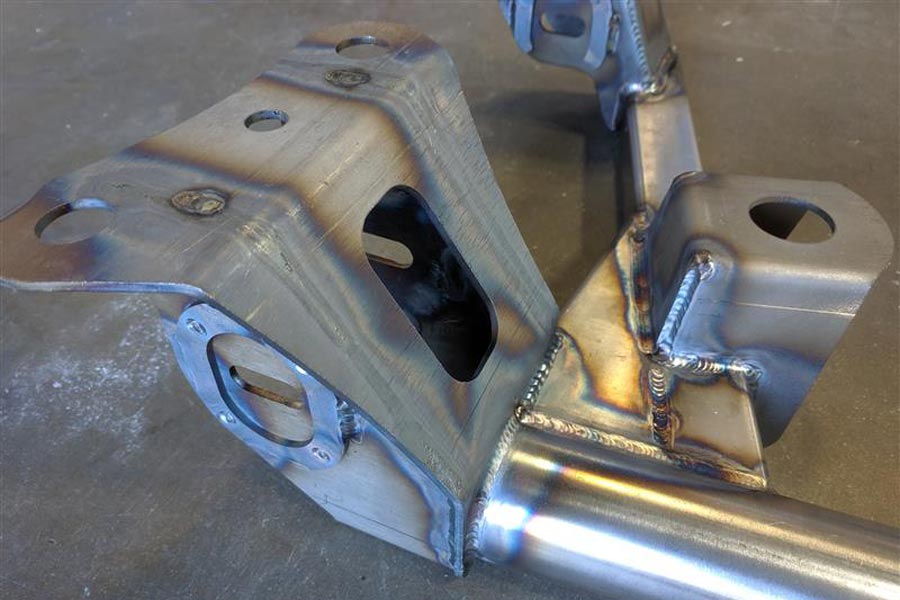

- TIG welded subframe
- Bump steer correction kit including rack interfaces
- FD transmission mount
- Engine and transmission isolators

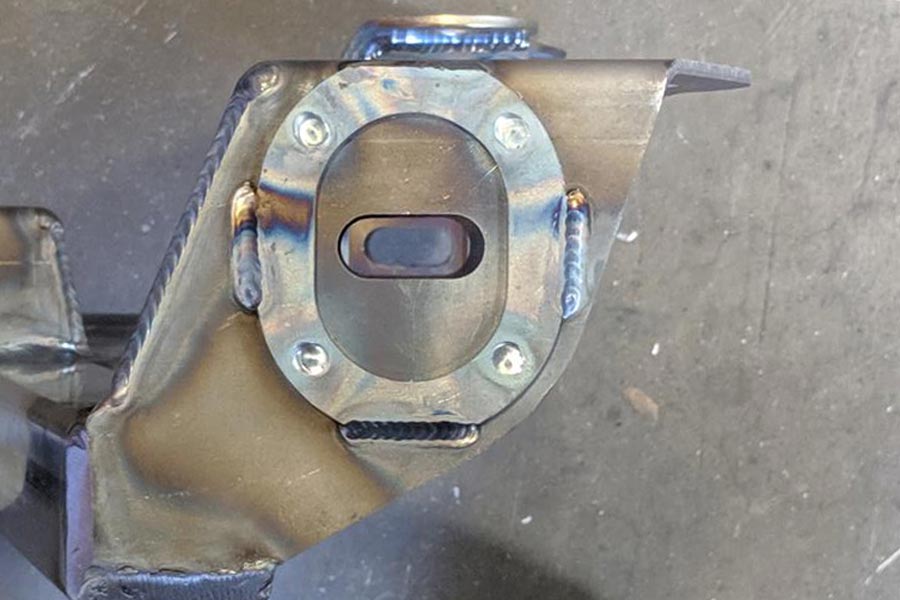

- FD Pedestals (for the interface to the block)
- All hardware
Our LS subframes provide dedicated mounting for any of the legendary LS gen3 / gen4 family of motors. We're even being told it works well with LT engines (gen 5) with the addition of some LS to LT adaptor plates. Our kit prioritizes ease of installation, sleek aesthetics, optimal clearances for headers and exhaust, and long-term serviceability. It comes powder coated satin black by, ensuring both style and durability.
Here's the backstory: For years, Ronin had been upgrading and selling FD subframes made by Samberg Performance. When Samberg stopped offering RX7 parts, we took everything we've learned and created a subframe of our own. We've made significant improvements, ensuring the kit is more than twice as stiff as before and features a host of enhancements for easier installation, strength, and improved performance.

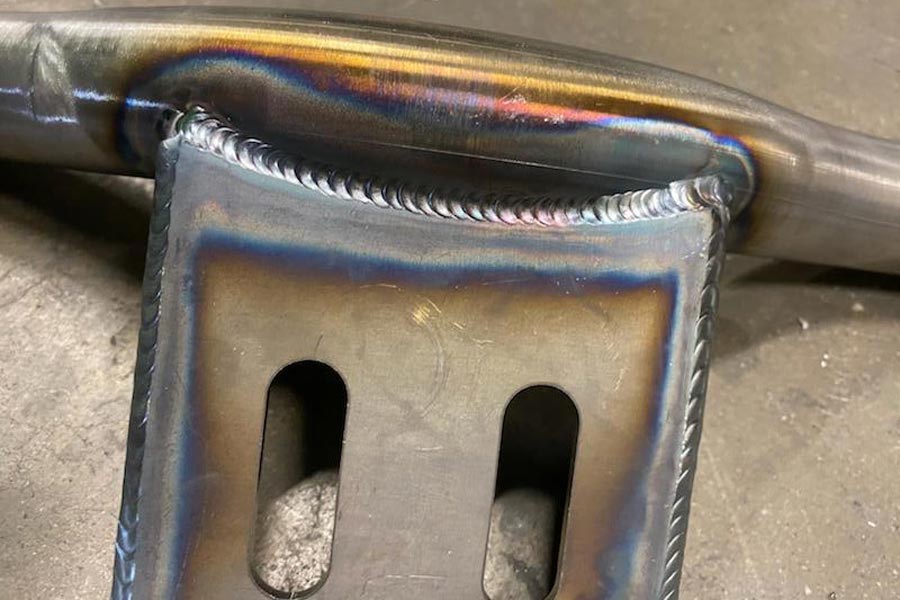

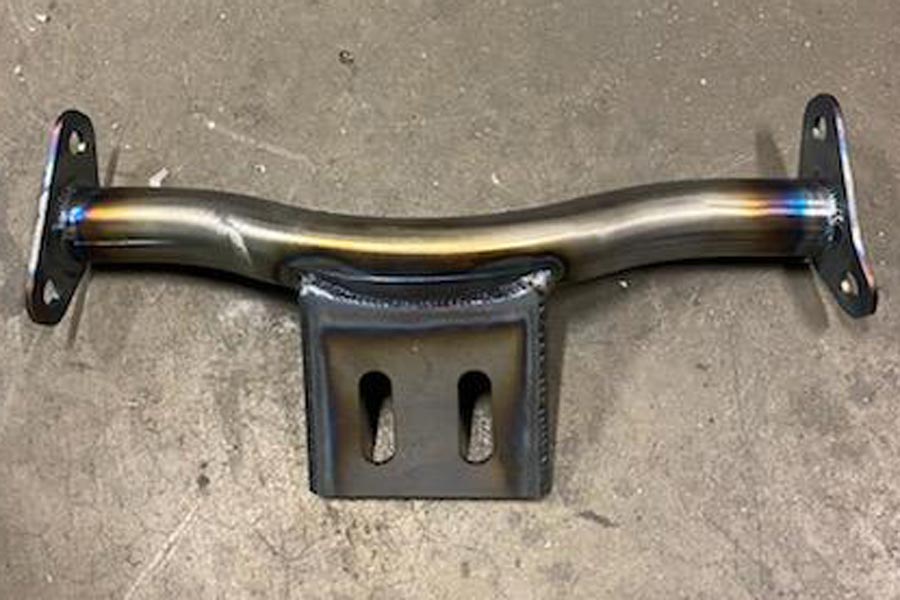

The transmission mount was designed around an F-body T56 form factor (our favorite transmission these days is the T56 Magnum-F) but also works with TR6060 using an adaptor plate. Using something else? It’s still easier to modify than start from scratch.
For those who prefer non-LS engines, we offer a version of the kit without welded motor mounts, so you can customize your setup as you see fit for a 20B, 2JZ, K24 or engine of choice. See the "Builder's Version" listing for that.
Now, let's talk rear end options. You can choose from a variety of rear end options to match your setup. We offer the following you may want consider:
- Ronin FD 8.8 complete, standard
- Ronin FD 8.8 complete, grande (uprated axles)
- Nead an OEM rear end mount? We’re working on relaunching our offering for that but for now Sikky offers one.
Ready to take your FD3S to the next level? Pick up our Ronin FD LSx Subframe, Complete Kit today and experience performance like never before.
